Combinated constructions

Combinated constructions

1 . Poop deck
2. Upper deck
3. Saloon deck
4. Boat deck
5. Promenade deck
6. Navigation deck
7. Compass flat
8. Forecastle deck
9. Second deck
10 . Steering engine room
11 . Rudder trunk
12 . After peak tank
13 . Wing tank
14 . Shaft tunnel
15. Deep tank
16. Engine room
17. Hold
18 . Chain locker
19 . Fore peak tank
20. Engine casing
21 . Stern frame
22 . Deep floor
23 . After peak bulkhead
24 . Water tight bulkhead
25 . Corrugated bulkhead
26 . Engine bed
27 . Double bottom
28 . Center line bulkhead
29 . Deck girder
30 . Collision bulkhead

Tank constructions

Deep tank constructions


1 . Center girder
2. Keel
Duck keel
3. Docking bracket
4. Bracket to margin plate
5. Inner bottom plating
6. Tank side bracket
7. Gusset plate
8. Frame
9. Horizontal bracket
10 . Deep tank top plate
11 . Center line bulkhead
12 . Corrugated bulkhead
13 . Shaft tunnel
14 . Screw shaft
15. Web frame
16 . Strong beam
17 . Transverse beam
18 . Deck longitudinal
19 . Beam bracket
20 . Stringer plate
21 . Bulwark plate
22 . Bulwark stay
23 . Hatch roaming
24 . Bulkhead plate
25 . Horizontal girder
26 . Vertical bulkhead stiffener
27 . Sheer strake
28 . Side plating
29 . Bilge strake
30 . Bottom plating
31 . Side gild”
32 . Bottom longitudinal
33 .Tank top longitudinal
34. Upper deck
35. Hold pillar
36. Horizontal girder

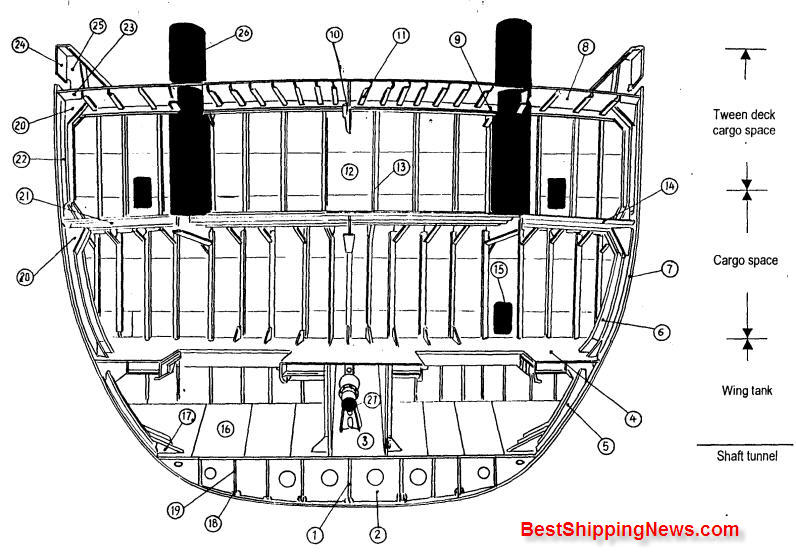

Wing tank constructions

1 . Center girder
2. Floor
3. Shaft tunnel
4. Tank top plate
5. Tank side frame
6. Hold frame
7. Shell plating
8. Upper deck
9. Transverse beam
10 . Deck girder
11 . Deck long .
12 . Water tight bulkhead
13 . Bulkhead stiffener
14 . Second deck
15 . Manhole
16 . Inner bottom plate
17 . Tank side bracket
18 . Bottom long .
19 . Vertical stiffener
20 . Beam bracket
21 . Deck beam
22 . Tween deck frame
23 . Stringer plate
24 . Bulwark plate
25 . Bulwark stay
26 . Derrick post
27 . Screw shaft

Engine room constructions

Engine room constructions


1 . Center girder
2. Side girder
3. $olid floor
4. Bottom long.
5. Tank top plating
6. Tank top bracket
7. Horizontal margin plate
8. Frame
9. Web frame
10. Auxiliary engine bed
11 . Main engine bed
12 . Engine bed bracket
13 . Beam bracket
14 . Engine room flatform
15 . Deck beam
16 . Tween deck frame
17 . Upper deck
18 . Cabin wall
19 . Wall side stiffener
20 . Horizontal stiffener
21 . Engine room pillar
22 . Engine casing
23 . Engine room recess
24 . Engine opening
25 . Saloon deck
26 . Curtain plate
27 . Bulwark plate
28 . Sheer strake
29 . Side plating
30 . Bilge strake
31 . Bottom plating .
32 . Keel
33 . Engine girder
34 . Docking bracket
35 . Bilge keel
36 . Vertical stiffener
37 . Strut
38 . Bracket to margin plate
39. Half depth girder
40 . Boat deck

Double bottom constructions

Double bottom constructions



1 . Solid floor
2. Bracket floor
Open floor
Skeleton floor
3. Center girder
4. Side girder
5. Margin plate
6. Center strake
7. Inner bottom plating
8. Floor plate
9. Reverse frame
10 . Main frame
11 . Keel
12 . A trake
13 . Bottom plating
14 . Bilge strake
15 . Bilge keel
16 . Tank side bracket
17 . Gusset plate
18 . Gusset angle
19 . Hold frame
20 . Hold pillar
21 . Double plate
22 . Bottom ceiling
23 . Air hole
24 . Manhole
25 . Limber hole
26 . Vertical stiffener
27 . Vertical bar
28 . Strut
29 . Center bracket
30 . Bracket to margin plate
31 . Lightening hole
