Hydrofoil craft, Hover craft

Hydrofoil craft

1 . Fore hydrofoil
2 . Screw shaft
3 . Aft hydrofoil
4 . Rudder
5 . Propeller
6 . Fair-lead
7 . Bollard
8 . Side light
9 . Side light screen
10 . Mast head light
11 . Mast `
12 . Search light
13 . Stern light
14 . Hand rail
15 . Liferaft
16 . Life ring
17 . Siren
18 . Vent.
19 . Fender,
20. Spray strip
21 . Ramp gate
22. Antenna
23. Ensign staff

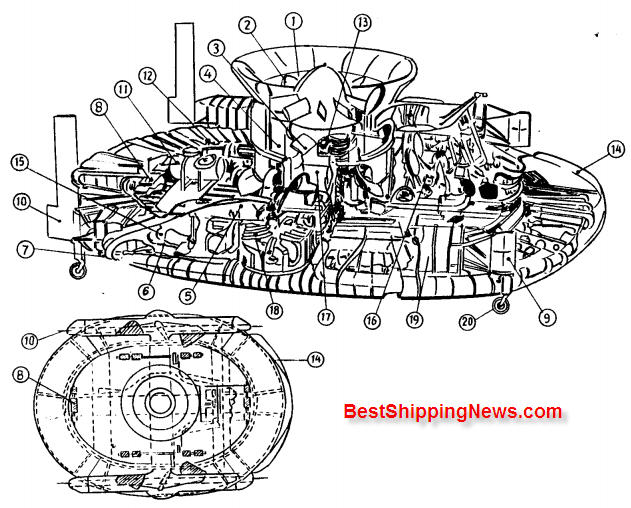

Hover craft

1 . Air intake
2. Fixed guide vane
3. Fan
4. Pressurized air funnel
5. Lift duct
6. Inner Jet nozzle
7. Outer Jet nozzle
8. Lift control unit
9 . Front rudder
10 . Aft rudder
11 . Fuel tank
12 . Oil tank
13. Piston engine
14. Bow structure
15 . Bouyant tank
16. Driver’s position
17 . Propulsion duct
18 . Propulsion duct guide vane
19 . Propulsion duct extention
20. Wheel
21 . Instrument panel
22. Main control stick
23. Secondary control stick
24 . Pitch & roll indicator

1 . Passenger cabin
2 . Entrance door
3 . Loading ramp
4. Towing and mooring point
5. Anchor locker
6. Radio mast
7. Dorsal fin
8 . Vent
9 . Fin intake
10 . Cone casing
11 . Working platform
12 . Fintail unit
13 . Rudder
14 . Elevators
15. Outer body support frame
16. Flexible skirt
17. Bleed duct !
18. Bucket rudder
19. Propeller
20. Aft support strut
21 . Exhaust duct
