Types of ships

Cargo ship

Container ship

RolI-on/RolI-off ship

Multi-purpose ship

Car & Passenger Ferry

Car ferry carrying passenger

Chemical tanker, product tanker

Oil tanker

Custom high speed picker boat

Wooden launch

Small ship

Wooden tug

Small steel ship

Custom high speed picker boat

Hydrofoil craft

Hover craft

Ice breaker

Escort vessel

Catcher boat

Fishing vessel

Fishing boat

Catamaran type passenger and auto-car carrier

Nuclear ship

Anchor Handling Tug Supplier



Cargo ship

General cargo ship Top



A bow B midship body C quarter D forecastle E  bridge castle  1 stem, bow 2 bulb 3 hawse pipe 4 forecastle break, forecastle bulkhead 5 main deck 6 second deck 7 third deck or orlop deck 8 upper 'tween deck 9 lower 'tween deck 10 lower hold 11 transverse bulkhead 12 tank top plating 13 propeller 14 rudder 15 stern frame 16 counter stern 17 bulwark 18 mooring gear 19 accommodation ladder 20  bridge, flying bridge, "monkey island" 21 lifeboat 22 ladder 23  funnel 24 signal mast, "Christmas tree" 25  aerials 26 cargo derricks 27 cargo cranes 28  heavy lift rig 29 hatch covers 30 ventilator 31 mast top, mast platform 32 samson post, king post 33 navigation light 34 hawse gear 35 deck house



A,B,D.hatches No 1, No 2, No3, C cofferdam  1.cargo gear, masts and derricks 2. hatch covers 3. cargo winches 4. mast house 5. main deck 6. second deck 7. 'tweendeck centreline bulkhead 8. lower hold centreline bulkhead 9. transverse bulkhead 10. tank top 11. stowage in holds 12. deck cargo



Top

High speed large flush deck cargo vessel

Top

Large shelter decker cargo vessel



Middle three island cargo vessel

Top

Aft engine type cargo vessel



A. shoring, blocking off, B. seizing, lashing,: C. upright 1. side ceiling, side sparring, cargo battens, grating (not shown), 2. Umber boards, 3. floor ceiling, 4. hatch coaming, 5. hatchway, 6. upper 'tweendeck, 7. lower 'tweendeck. 8. lower hold (LH), hold, hatch, 6+7+8= hatch h = deckhead, headroom, h' = head under beams,

Top

Equipment in cargo space

Top

Room on cargo ship



Container ship

General structure Top

1. bridge castle front, 2. deck containers, 3. foremast and mast top, 4. forecastle, 5. insulated containers in holds, 6. container refrigeration ducts, 7. double hull, 8. passageway,





Top

Container numbering

bays rows tiers

Top

Container securing

Deck fittings  2. flush deck fitting, flush deck insert, flush foundation, circular foundation, stud bushing with plugging screw, screw plug, 5. socket, base stowing plate, base (... to be used with 21) 15. U-frame, shoe fitting, dovetailed base, companion fitting, dovetailed foundation (... to be used with13,17) 22,24. keyhole inserts (sunken, flush, raised),  Bottom fittings  1. pin bottom fitting, base stacking cone, cone plate, bottom stacking cone, bottom locator (... to be used with 2) 21. bottom stacking cone {... to be used with 5,12,22,23). 23. guide cone,  Stacking and locking fittings  4. stacking cone, intermediate stacking cone, stacker, stacking stud, 11. locking cone, pinstacker (with locking pin), 1416,17. twistlock, twist locking cone, 20. spacer stacking cone, compensating cone, spacer fitting (with cone top and bottom), 8,19,25. bridge fittings, 8. adjustable bridge fitting, clamp, 19. offset height clamp, compensatory bridge fitting, variable height clamp, 25. non-adjustable bruise fitting, double stacker, double intermediate stacking  Lashing points or lashing terminals  6. D-ring, lashing eye,  Lashing equipment  7,9 loadbinders, 7. chain lashing with chain lever, 9. lashing wire and turnbuckle, < 18. bulkhead bridge fitting,  other lashing equipment  10. lashing rod or bar, securing pads (penguin hook, elephant's foot, eye hook), webbing,

RolI-on/RolI-off ship

General structure Top

1. quarter stern ramp, 2. finger flaps, 3. actuating cables, 4. stern door, 5. king post, 6. trunk, 7. ventilator heads (mushroom type), 8. on-deck containers, 9. bow thruster, 10. ramp, 11. after thruster, 12. fork lift truck,



Multi-purpose ship

Top

Car & Passenger Ferry

Car & Passenger Ferry Top





Coasting cargo & passenger ship

Car ferry carrying passenger Top

Catamaran type passenger and auto-car carrier Top

Chemical tanker, product tanker, oil tanker

Chemical tanker, product tanker Top

1. Balanced rudder with conventional propeller 2. Auxiliary unit 3. Lifeboat in gravity davits 4. Hydraulic prime mover 5. Cargo control room 6. Tank heating / tankwash room 7. Cofferdam, empty space between two tanks 8. Vent pipes with pressure-vacuum valves 9. Hydraulic high pressure oil-and return lines for anchor and mooring gear, 10. Hose crane 11. Manifold 12. Wing tank in double hull 13. Double bottom tank 14. Tanktop 15. Longitudinal vertically corrugated bulkhead 16. Transverse horizontally corrugated bulkhead 17. Cargo pump 18. Catwalk 19. Railing 20. Deck longitudinals 21. Deck transverses 22. Cargo heater 23. Forecastle deck with anchor-and mooring gear 24. Bow thruster 25. Bulbous bow



1. Balanced rudder with conventional propeller 2. Auxiliary unit 3. Lifeboat in gravity davits 4. Hydraulic prime mover 5. Cargo control room 6. Tank heating / tankwash room 7. Cofferdam, empty space between two tanks 8. Vent pipes with pressure-vacuum valves 9. Hydraulic high pressure oil-and return lines for anchor and mooring gear, 10. Hose crane 11. Manifold 12. Wing tank in double hull 13. Double bottom tank 14. Tanktop 15. Longitudinal vertically corrugated bulkhead 16. Transverse horizontally corrugated bulkhead 17. Cargo pump 18. Catwalk 19. Railing 20. Deck longitudinals 21. Deck transverses 22. Cargo heater 23. Forecastle deck with anchor-and mooring gear 24. Bow thruster 25. Bulbous bow

Oil tanker Top

Boat

Custom high speed picker boat Top

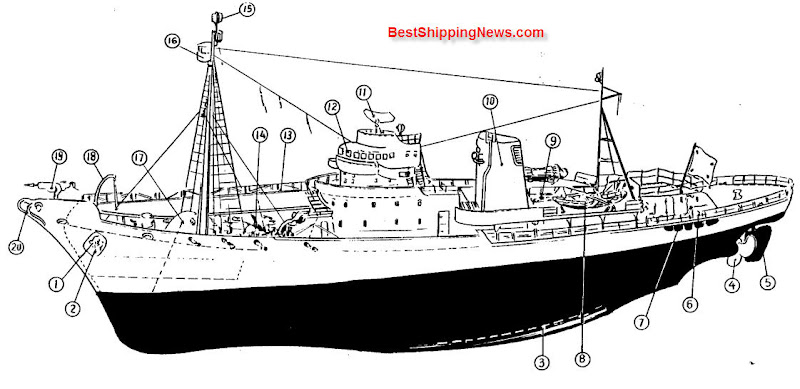

Catcher boat

Catcher boat Top



Wooden

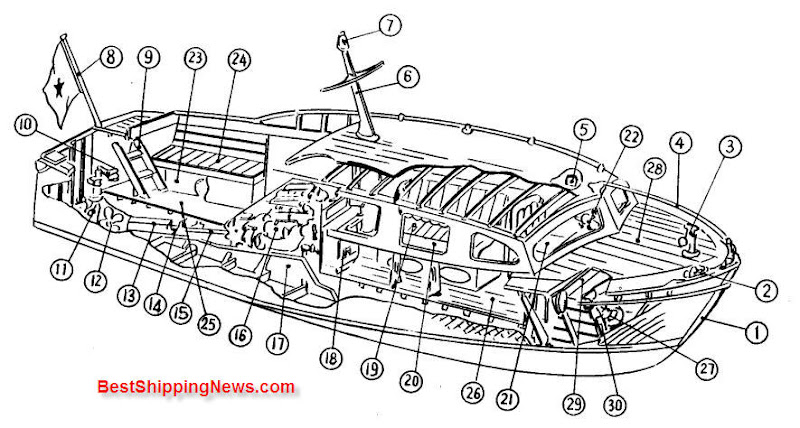

Wooden launch Top

Wooden tug Top

Small ship

Small ship Top



Small steel ship Top



Hydrofoil craft

Hydrofoil craft Top

Hover craft Top

Ice breaker

Top

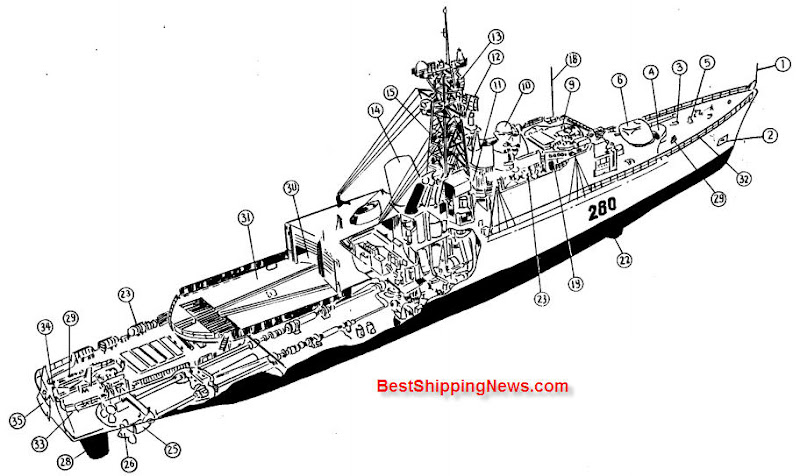

Escort vessel

Helicopter carring destroyer Top





Fishing vessel

Top

1. Rudder 2. Jet nozzle 3. Propeller 4. Engine room 5. Engine room bulkhead 6. Main engine 7. Fuel tanks, two wing tanks and a center tank 8. Starboard bracket pole, used when fishing is done with nets and otter boards. The derrick will not be used in that case 9. Mast aft 10. Revolving drum for nets 11. Funnel 12. Messroom, dayroom 13. Bridge with navigational equipment and control panels for main engine, drum for nets and fish winch 14. Cabin for four 15. Railing 16. Capping 17. Scupper hole 18. Wooden workdeck 19. Hatch on fish tank 20. Drop chute 21. Fish tank, with an insulation layer of about 20 cm all around 22. Bilge keel 23. Shear strake 24. Double bottom 25. Bow thruster installation 26. Name of the ship and fishery (registration) number 27. Fish winch 28. Conveyor belt and fish cleaning table 29. Guide pulleys for fish line 30. Forecastle deck 31. Fish wire blocks 32. Fish wire 33. Fish derrick 34. Mast 35. Radar antenna on mast



Fishing boat Top



Nuclear ship

Nuclear ship Top



Anchor Handling Tug Supplier Top

1. Stern roll for anchor handling 2. Stoppers for anchor handling 3. Steering engine 4. Starboard ducted propeller 5. Stern tube 6. Transverse thruster 7. Cofferdam 8. Tanks for dry bulk cargo e.g. cement 9. Mud tanks 10. Propeller shaft 11. (Reduction) Gear box 12. Main engine 13. Fire pump 14. Life rafts 15. MOB-boat with crane 16. Storage reel for steel wires for anchor handling 17. Anchor handling winch 18. Bridge with controls for deck gear and ship's steering 19. Fire fighting monitor 20. Radar antennas 21. Antenna for communication system / satellite antenna 22. Watertight bulkhead 23. Anchor windlass, below deck 24. Azimuth thruster 25. Bow thruster

1.    Work deck 2.    Anchor roller 3.    Steering gear 4.    Starboard ducted propeller 5.    Stern tube 6.    Transverse thruster 7.    Azimuth thruster 8.    Tanks for dry bulk cargo e.g. cement / mud 9.    Deck cranes 10.    Propeller shaft 11.    (Reduction) Gear box 12.    Main engine 13.    Heavy lift crane 14.    Life rafts 15.    MOB-boat with crane 16.    Life boat 17.    Storage reel for steel wires for anchor handling 18.    Bridge with controls for deck gear and ship's steering 19.    Fire fighting monitor 20.    Radar antennas 21.    Antenna for communication system / satellite antenna 22.    Switchboard 23.    Anchor windlass 24.    Helicopter deck



1.    Work deck 2.    Anchor roller 3.    Steering gear 4.    Starboard ducted propeller 5.    Stern tube 6.    Transverse thruster 7.    Azimuth thruster 8.    Tanks for dry bulk cargo e.g. cement / mud 9.    Deck cranes 10.    Propeller shaft 11.    (Reduction) Gear box 12.    Main engine 13.    Heavy lift crane 14.    Life rafts 15.    MOB-boat with crane 16.    Life boat 17.    Storage reel for steel wires for anchor handling 18.    Bridge with controls for deck gear and ship's steering 19.    Fire fighting monitor 20.    Radar antennas 21.    Antenna for communication system / satellite antenna 22.    Switchboard 23.    Anchor windlass 24.    Helicopter deck



1.    Work deck 2.    Anchor roller 3.    Steering gear 4.    Starboard ducted propeller 5.    Stern tube 6.    Transverse thruster 7.    Azimuth thruster 8.    Tanks for dry bulk cargo e.g. cement / mud 9.    Deck cranes 10.    Propeller shaft 11.    (Reduction) Gear box 12.    Main engine 13.    Heavy lift crane 14.    Life rafts 15.    MOB-boat with crane 16.    Life boat 17.    Storage reel for steel wires for anchor handling 18.    Bridge with controls for deck gear and ship's steering 19.    Fire fighting monitor 20.    Radar antennas 21.    Antenna for communication system / satellite antenna 22.    Switchboard 23.    Anchor windlass 24.    Helicopter deck
