Equipment in cargo space

Equipment in cargo space

1 . Vertical sparring
2. Rubbing piece
3. Sparring sleeper
4. Shell plate
5. Side frame
6. Horizontal sparring
7. Vertical sparring cleat
8. Horizontal sparring cleat
9. Bottom ceiling
10 . Bilge ceiling
11 . Limber board
12 . Filling board .
13 . Manhole
14 . Manhole coaming
15 . Manhole steel cover
16 . Ceiling sleeper
17 . Inner bottom plate
18 . Quarter piller
19 . Fixed vertical sparring
20 . Detachable sparring
21 . Socket
22. Steel door
23. Steel wall

Combinated constructions

Combinated constructions

1 . Poop deck
2. Upper deck
3. Saloon deck
4. Boat deck
5. Promenade deck
6. Navigation deck
7. Compass flat
8. Forecastle deck
9. Second deck
10 . Steering engine room
11 . Rudder trunk
12 . After peak tank
13 . Wing tank
14 . Shaft tunnel
15. Deep tank
16. Engine room
17. Hold
18 . Chain locker
19 . Fore peak tank
20. Engine casing
21 . Stern frame
22 . Deep floor
23 . After peak bulkhead
24 . Water tight bulkhead
25 . Corrugated bulkhead
26 . Engine bed
27 . Double bottom
28 . Center line bulkhead
29 . Deck girder
30 . Collision bulkhead

Escort vessel

Helicopter carring destroyer

1 . Jack staff
2 . Anchor
3. Hatch
4. Wave screen
5 . Capstan
6 . High angle gun
7 . ASROC(Anti submarine rocket)
8 . Accommodation ladder
9 . Navigation Bridge
10 . Director for machine gun
11 . Flag deck
12 . Air search radar
13 . Surface search radar
14 . Stack
15 . Lattice mast
16. Cutter
17 . Torpedo
18 . Whip
19 . Search light
20 . Crane
21 . Bilge keel
22 . Sona dome
23 . Liferaft
24 . Skeg
25 . Shaft bracket
27 . Propeller guard
28 . Rudder
29 . Bollard
30. Helicopter hanger
31 . Helicopter deck
32. Close fair-lead
33. Fair-lead
34. Ensign staff
35. Naval ensign

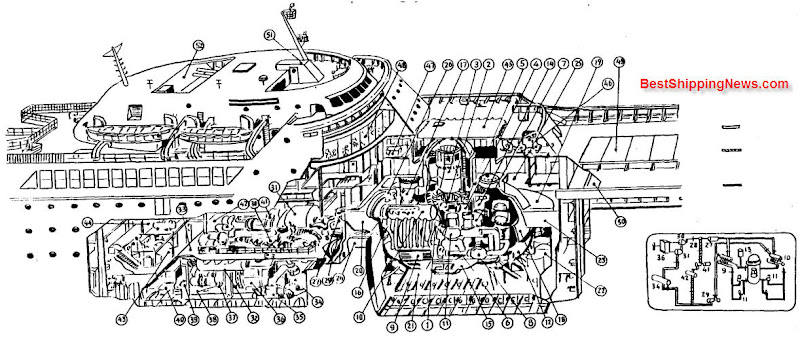

Nuclear ship

Nuclear ship

1 . Core
2. Control rod
3. Control rod mechanism
4. Reactor shell
5. Lead covered neutron shield tank
6, Primary inlet to reactor
7. Primary outlet
8. Gate valve
9. Heat exchangers
10. Steam drum
11 . Primary pump
12. Surge line to pressurizer
13. Pressurizer
14. Condensing tank
15. Drain tank
16. Let down cooler
17. Cooling ducts
29. Main feed pump
30. H.P . Turbine
31 . L.P . Turbine
18. Steel containment
19 . Lead shielding
20 . Polyethylene shield
21 . Vessel support member
22 . Water treatment plant
23 . Concrete shielding
24 . Laminated collision mat
25. Anti-roll bracket
26 . Secondary steam outlet to turbines
27 . Main steam separator
28 . Throttle valve
32 . Steam separator
33 . Take home motor
34 . Main condenser
38 . Coupling
39 . Propeller shaft steady bearing
40 . Propeller shaft
41 . Turbo generator sets
42 . Auxiliary condenser
43 . Control center
44 . Water heater and tank
45 . Reactor hatch
46 . Fan room
47 . Sick bay
48 . Main lounge
49,50. Cargo hatch
51 . Waste gas disposal funnel
52 . Air conditioning exhaust
35 Main condenser circulating pump
36 . Reduction gear
37 . Thrust bearing housing

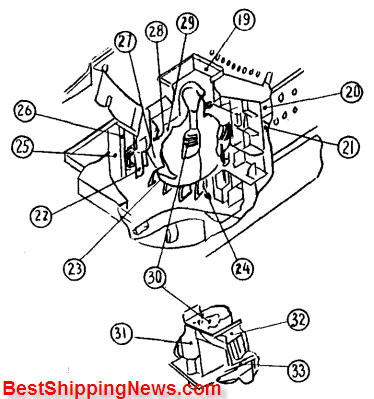

1 . Rudder
2 . Propeller
3 . Docking bridge
4 . Mainmast
5 . Pool
6 . Lifeboat
7 . Radar scanner
8 . Bridge
9. Foremast
10 . Cargo hatch
11 . Derrick post
12 . Windlass
13 . Bollard
14 . Anchor
15 . Derrick boom
16 . Boom rest
17 . Upper deck
18 . Long bridge deck
19 . Reactor hatch
20 . Passenger room
21 . Crew’s space
22 . Concrete
23 . Longitudinal foundation
24 . Transverse foundation
25 . Vertical stiffener
26 . Horizontal stiffener
27 . Polyethylene shield
28 . Lead shield
29 . Containment vessel
30 . Reactor
31 . Pressurizer
32 . Steam drum
33 . Heat exchanger
