Shaftline

Shaftline


1.rudder stock,
2.rudder,
3.propeller bonnet,
4.propeller,
5.stern frame,
6.stern tube sealing,
7.stern tube bearings
8.stern tube,
9.propeller shaft, tail shaft,
10.plummer Mock, pillow block, shaft block,
11.intermediate shaft,
12.thrust shafts
13.flywheel,
14.crankshaft, shaft alley, shaft tunnel,

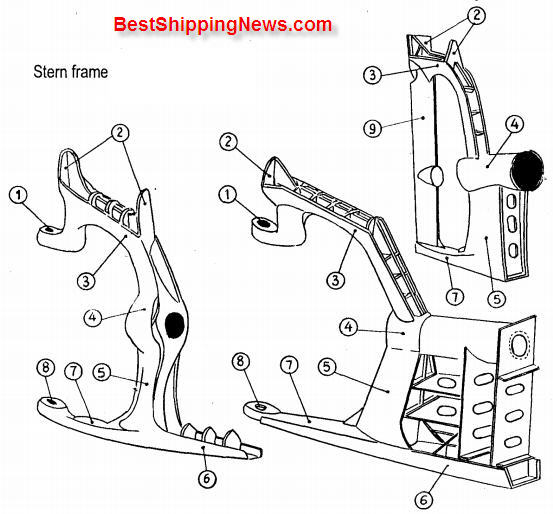

Stern frame, Rudder

1 . Top gudgeon
2. Rib, Horn
3. Crown
4. Boss
5. Propeller post
6. Heel piece
7. Sole piece, shoe piece
8. Bottom gudgeon
9. Rudder post
10. Rudder stock
11 . Flange
12 . Bolt
13. Lifting (gear) hole
14 . Rudder plate
15 . Rudder frame
16 . Arm
17 . Pintle
